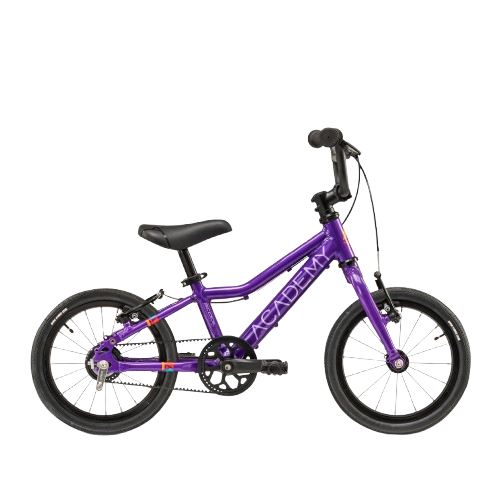

Bike Academy Grade 2 Belt Purple 14" - 2025
- Wheel size: 14”
- Weight: 5.40 kg
- Frame: Triple shaded aluminum
Technical Details
-
Wheels: 14" x 1.5" x 16H, aluminum, black
-
Tires: VEE TIRE Speedster 14"x1.50 (40-254), reflective stripes, 72 TPI
-
Frame Material: Triple-butted aluminum
-
Frame Shape: Diamond Knick
-
Weight: 5.40 kg
-
Drive: Single-speed freewheel
-
Crankset: C-Drive 48T, 89mm, aluminum (front) and C-Drive 30T, 14mm, aluminum (rear)
-
Rear Hub: Aluminum, 14G/16H, black
-
Front Hub: Aluminum, 14G/16H, black
-
Front Brake: V-Brake (aluminum)
-
Rear Brake: V-Brake (aluminum)
-
Handlebar: BMX style, 470 mm
-
Stem: ACADEMY AHEAD, 50mm
-
Seat Post: 25.4mm aluminum
-
Saddle: DDK, integrated with seat post
-
Pedals: 95x80x23mm, ball bearing, black with reflectors, 9/16 thread
-
Chain Guard: Not specified (no chain guard mentioned)
Bike Geometry
-
Frame Height: 21 cm
-
Seat Tube Length: 205 mm
-
Seat Angle: 68.0°
-
Head Tube Length: 90 mm
-
Steering Angle: 68.0°
-
Top Tube Horizontal Length: 350 mm
-
Bottom Triangle Length: 267 mm
-
Wheelbase: 631 mm
-
Minimum Saddle Height: 410 mm
-
Maximum Saddle Height: 500 mm
-
Crank Arm Length: 89 mm
