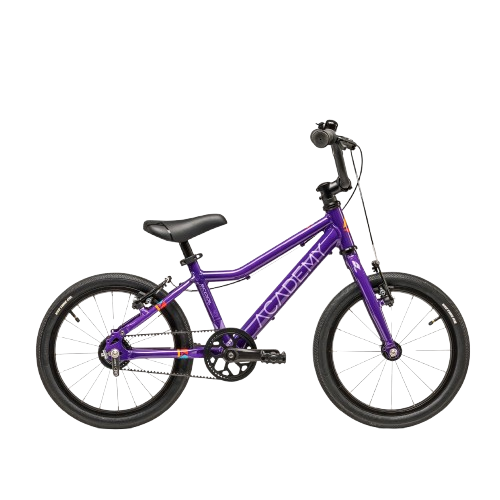

Bike Academy Grade 3 Belt Purple 16" - 2025

Technical Details

• Wheels: 16" x 1.5" x 16H, aluminum, black

• Tires: VEE TIRE Speedster 16"x1.50 (40-305), reflective stripes, 72 TPI

• Frame Material: Triple-butted aluminum

• Frame Shape: Diamond Knick

• Weight: 5.70 kg

• Drive: Single-speed freewheel

• Crankset: C-Drive 48T, 102mm, aluminum (front) and C-Drive 30T, 14mm, aluminum (rear)

• Rear Hub: Aluminum, 14G/16H, black

• Front Hub: Aluminum, 14G/16H, black

• Front Brake: V-Brake (aluminum)

• Rear Brake: V-Brake (aluminum)

• Handlebar: BMX style, 470 mm

• Stem: ACADEMY AHEAD, 50mm

• Seat Post: 25.4mm aluminum

• Saddle: DDK, integrated with seat post

• Pedals: 95x80x23mm, ball bearing, black with reflectors, 9/16 thread

Bike Geometry

• Frame Height: 26 cm

• Seat Tube Length: 255 mm

• Seat Angle: 68.0°

• Head Tube Length: 100 mm

• Steering Angle: 68.0°

• Top Tube Horizontal Length: 397 mm

• Bottom Triangle Length: 280 mm

• Wheelbase: 676 mm

• Minimum Saddle Height: 490 mm

• Maximum Saddle Height: 570 mm

• Crank Arm Length: 102 mm
