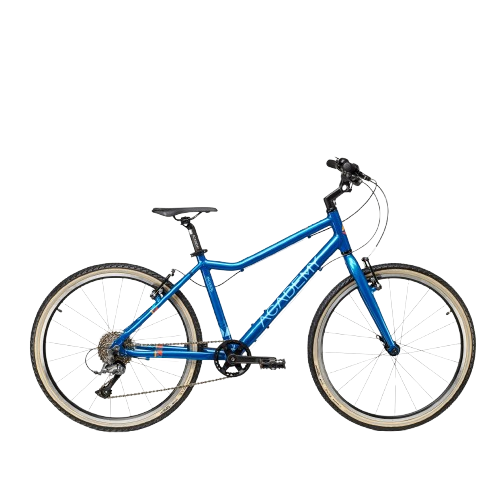

Bike Academy Grade 5 Blue 24" - 2025

Technical Details

• Wheels: 24" x 1.5" x 20H, aluminum, black

• Tires: VEE TIRE Rail 24"x1.50 (40-507), Skinwall Synthesis, reflective stripes, 90 TPI

• Frame Material: Triple-butted aluminum

• Frame Shape: Diamond Knick

• Weight: 8.20 kg

• Drive: 8-speed chain derailleur

• Shifter: Shimano SL-R2000, rapidfire / Microshift TS-39-8R

• Rear Derailleur: Shimano RD-R2000GS Claris / Microshift RD-26S

• Crankset: ACADEMY 30T, 130mm, aluminum

• Cassette/Freewheel: Shimano CS-HG 41 11-32T / Microshift CS-H081 11-32T

• Rear Hub: Aluminum, 14G/20H, black, QR

• Front Hub: Aluminum, 14G/20H, black, QR

• Front Brake: V-Brake (aluminum)

• Rear Brake: V-Brake (aluminum)

• Handlebar: 580 mm, double-butted aluminum, 20mm rise

• Stem: Adjustable COMOA Ergoline

• Seat Post: 27.2mm x 250mm, aluminum

• Saddle: Vader

• Pedals: 95x80x23mm, ball bearing, black with reflectors, 9/16 thread

Bike Geometry

• Frame Height: 38 cm

• Seat Tube Length: 380 mm

• Seat Angle: 72.0°

• Head Tube Length: 130 mm

• Steering Angle: 72.0°

• Top Tube Horizontal Length: 499 mm

• Bottom Triangle Length: 400 mm

• Wheelbase: 948 mm

• Minimum Saddle Height: 720 mm

• Maximum Saddle Height: 850 mm

• Crank Arm Length: 135 mm
